POWERSTATION 2002

UPDATE: See What's New In  POWERSTATION 2002

DEMO: Click here to Download a Demo of POWERSTATION 2002

POWERSTATION Specifications

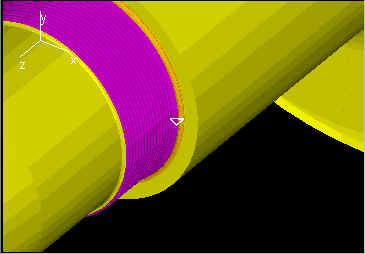

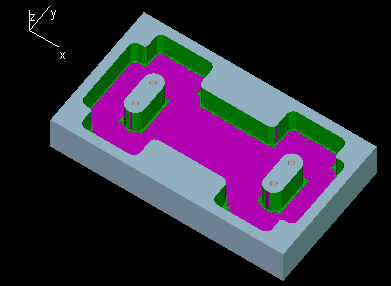

Solids verification* -- SOLIDIFY -- Full interactive solids model verification for both milling and turning. Supports All standard milling / turning tools. Prove out your NC-Programs on the Computer, not the Machine.

Unlike most systems, POWERSTATION 2000 can verify both the generated tool path and / or the Posted NC-Code.

Click On the Above Pictures for a Live Action Video of SOLIDIFY !!!

Super Chain Command -- The Chain Cutting command has been significantly improved to automatically support Multiple Stock Roughing, Automatic use of Cutter Compensation, along with automatic generation of custom Lead In/ Lead Out moves.

Improved Geometry Creation: Modal Point Snaps, Automatically repeat geometry commands

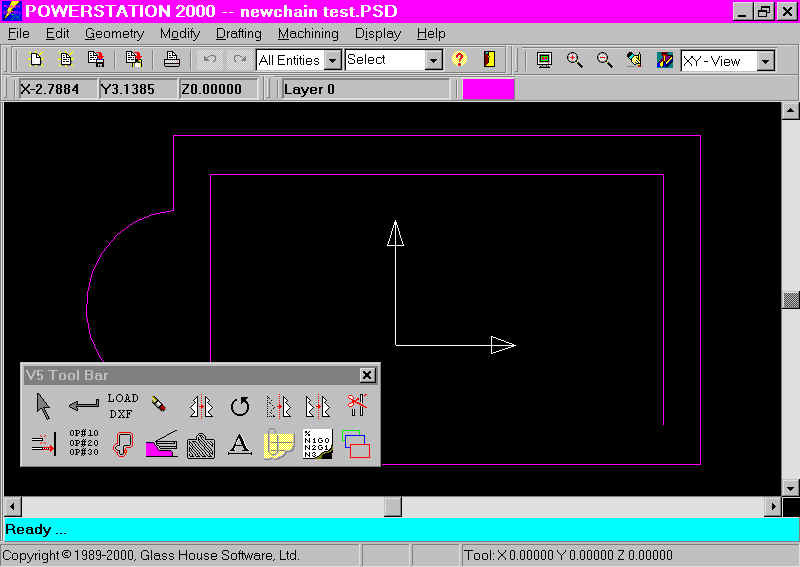

Improved User Interface - POWERSTATION 2000 has many new/improved used interface elements. All of these new feature are user selectable for greater customization

• More toolbars, Movable, Selectable
• Greatly reduced mouse clicks/movement
• Select Black or White Display Background
• Coordinate Entry retains values
• More / Improved Dialogs

IGES Import w/summary* -- Import IGES Files from High End CAD systems.

AutoCAD 2000 DXF Import with Detailed Summary. Now directly supports UNIX files !!

Automatic Bad Geometry Filtering/clean up -- Finds and repairs common geometry problems automatically, improves speed and reliability of chaining and pocketing commands.

Improved tool path editing commands:

• Repeat Tool Path in a Random, Circular,-Z- Axis Stepping or Grid pattern
• Repeat Tool Path Spindle up between repeats
• Modify an operations -Z- levels
• Improved Single Block Stepping Mode

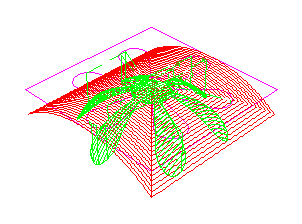

• Surface projections (Project an operation on to a cylinder, cone, sphere or plane) (See Example:)

Custom Tool Images -- Standard Mills, Drills, and Lathe Tools, displayed with full animation.

Custom NC-File Name Extensions for each machine

Spell Checker for Drawn Text and Operation Descriptions, avoid embarrassing spelling mistakes.

New Pocketing Geometry "Single Pick Chain" option -- When Pocketing, the pocket/island boundaries may now be selected by convention chain, single picked entities, our new single click selection.

Mirror over X/Y axis, Line -- Simple mirroring over the -X- or -Y- axis, no longer requires drawing a construction line.

Lathe Canned Cycle Support for Drilling and Roughing, reduces NC-Program Length.

Print layer data sheet -- Generates a detailed report of all layers, there status and description.

New Desktop Enhancements:

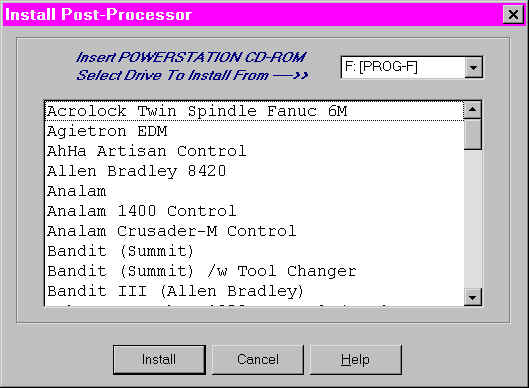

• Simplified Install of Sample Post-Processors
• Backup / restore all important settings
• Simple Copy To/From Diskette
• DNC Settings Printout

Additional Modules / Advanced features

Basic version now has INGRAVER

WINGRAVER-PRO 2000**

QUICK-LINK 2000**

NC-Code Analyzer 2000*

Legend:

* PRO & PRO+ Versions Only
** PRO+ Version Only

POWERSTATION Specifications
