NC-Code Analyzer 2008/Xpert
Complete NC-Code proveout, Correction, and Cycle Time
Prove out, Analyze, and calculate Cycle Time for all of your G-Code machine
files, with Interactive Graphics Verification.Verify, Debug, and calculate cycle time for
your NC-Programs, without tying up your expensive Machines !!
NC-Code
Xpert
FEATURES:
- Eliminates Need for Machine Dry-Run.
- Checks NC-program for Programming Errors.
- 3 Dimensional Viewing.
- Built in Tool Shape generator for Standard Turning Tools (Diamond, Round, Triangle,
Grooving and Threading)
- On-Line Editor for Immediate Correction (Errors can be corrected as you run)
- Built in Basic NC-Code Editor
- Auto-Run, Auto-Fit, and Block by Block (Single Block) control
- Will Accept any G-code Program (some restrictions apply*). Includes Detailed Setup
Program for Maximum Flexibility.
NC-Code Analyzer
2008 All the Advantages of NC-Code Xpert, Plus:
- Calculates Cycle time & Job Estimate.
- Cycle Time Calculation can be easily user "adjusted" for maximum accuracy.
- Part Geometry can be Imported as a DXF file, and Displayed along with Tool Path for
Maximum Verification.
- Built in Tool Shape generator for Standard Turning Tools (Diamond, Round, Triangle,
Grooving and Threading)
- Output the Tool Path as a DXF file for Importing into other systems
- Full Solids Verification - When combined with
POWERSTATION PRO/PRO+
Easy-to-use
Full use of all standard WINDOWS features: Menus, dialog box’s, multiple windows,
and full clipboard support.
Requires
Microsoft Windows 95/98/Me/NT/XP/Vista, with compatible pointing device,
display, and printer.
* Supports Industry Standard -G- Code Formats

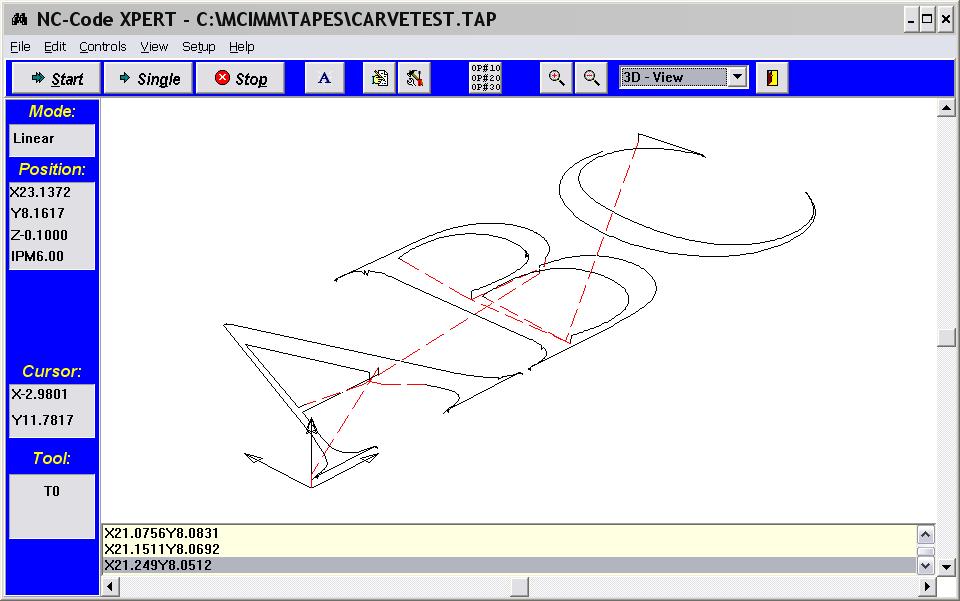

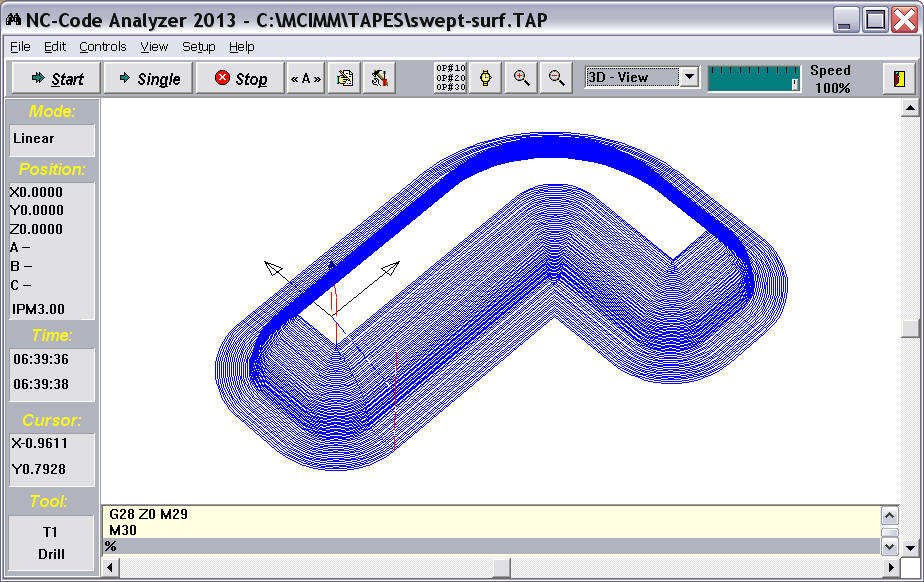

Sample 3D Milling/Viewing

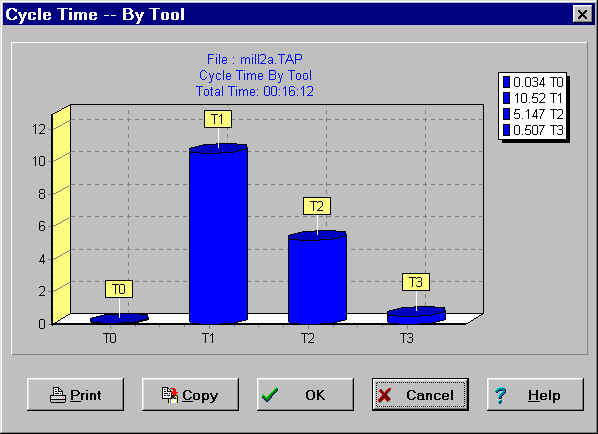

Cycle Time Graph (Available with Analyzer
2000 Only)
Sample Data File Print Out (Not Available with
Xpert Version)
